30 Degree IP67 3000K Warm White Marine LED FloodLights

Product Categories
LCD-CESP LIGHTING,CO., LIMITED
Contact Now

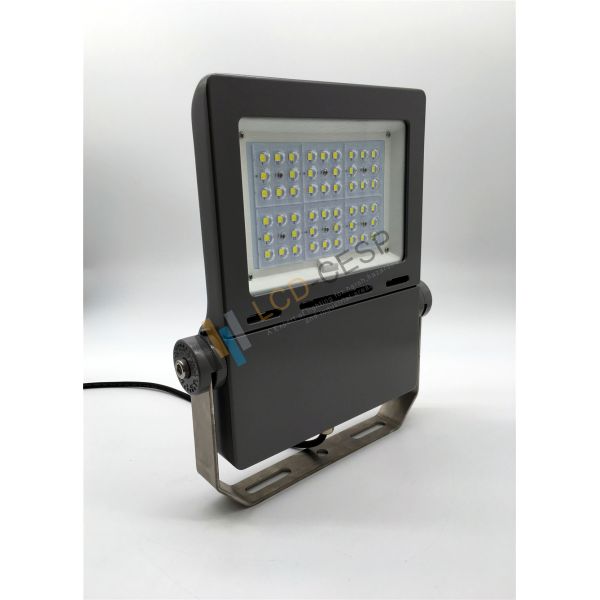

30 Degree IP67 3000K Warm White Marine LED FloodLights

Brand Name : LCD-CESP brand

Model Number : LCD-FA-155-LNXXX

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 piece/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Driver : HLG MEANWELL

Beam angle(°) : 7, 15, 30, 60,90,120,TYPE II, TYPE III, TYPE V

Color temperature(cct) : warm white(2700-3500k)Pure white(4000-4500k)Cool white(6000-6500k)

Working temperature(℃) : -30 - +50 degree Celsius

Frequency : 60 / 50 hz

PF : 0.95

Contact Now

30 Degree IP67 3000K Warm White Marine LED FloodLights

led marine flood lights 150 watt optic beam 30 degree 100-277VAC 24750lm IP67

Optics Information Mounting options:
  • Typical photometrical features
  • LED colour temperature:
  • 3000K (Warm White)
  • 4000K (Neutral White)
  • 6500K (Cool White)
  • Colour rendering index (CRI):
  • >80 (Warm White)
  • >80 (Neutral White)
  • >75 (Cool White)
  • Upward Light Output Ratio (ULOR): 0%
  • Adjustable stirrup & Bracket
  • Weight: 15kg
  • Recommended mounting height: 5-40 m
  • Ambient operating temperature: -40°C to +50°C
  • Storage temperature: up to 85°C

30 Degree IP67 3000K Warm White Marine LED FloodLights
Available photometric distributions:
  • Asymmetric Forward
  • Asymmetric Narrow
  • Asymmetric Wide
  • Asymmetric Extra Wide Flood
  • Asymmetric Forward Throw Narrow
  • Symmetrical Wide Flood
  • Symmetrical Narrow Spot
  • Symmetrical Wide
  • Symmetrial Forward
Rated initial chromaticity co-ordinate values:
  • 4000K - CIE(x= 0.38, y= 0.38) 5SDCM
  • 6500K - CIE(x= 0.34, y= 0.35) 5SDCM
 30 Degree IP67 3000K Warm White Marine LED FloodLights


ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

Product DIMENSIONS

Item Name AxBxC (MM)
FA-085/105/153 IP67 flood light 389.2x296.7x57
FA-205 IP67 flood light 436.6x345.7x57
FA-255 IP67 flood light 436.6x345.7x57
FA-305/353 IP67 flood light 582x385x60


Weight (kg ):

Item Name Weight (KG)
FA-085/105/153 IP67 flood light 3.4
FA-205 IP67 flood light 4.8
FA-255 IP67 flood light 7.2
FA-305/353 IP67 flood light 7.5

30 Degree IP67 3000K Warm White Marine LED FloodLights

Product Construction

30 Degree IP67 3000K Warm White Marine LED FloodLights

Product Photos

30 Degree IP67 3000K Warm White Marine LED FloodLights

30 Degree IP67 3000K Warm White Marine LED FloodLights

30 Degree IP67 3000K Warm White Marine LED FloodLights

30 Degree IP67 3000K Warm White Marine LED FloodLights

30 Degree IP67 3000K Warm White Marine LED FloodLights

30 Degree IP67 3000K Warm White Marine LED FloodLights
